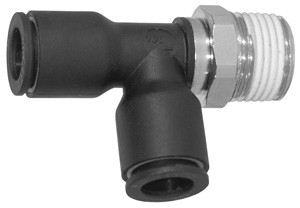

# DIX31035618 - Male Swivel Run Tee (Tube to Male NPT) - Tube O.D.: 1/4 in. - Male NPT: 3/8 in.

Double click on above image to view full picture

Zoom Out
Zoom In

# DIX31035618 - Male Swivel Run Tee (Tube to Male NPT) - Tube O.D.: 1/4 in. - Male NPT: 3/8 in.

$1,000.00$4.80

Be the first to review this product

Product Id: DIX31035618
$4.80
Add Items to Cart
OR

Quick Overview

# DIX31035618 - Male Swivel Run Tee (Tube to Male NPT) - Tube O.D.: 1/4 in. - Male NPT: 3/8 in.

Product Description

Quick Connect and Disconnect:  Simply push tubing in.  To remove, press the release ring towards the fitting and pull tubing out.  No tools required. Materials: Nickel-plated Brass Construction.  Black body is Glass-filled Nylon; Buna-N O-Ring seal; Polypropylene release button.  Silicone free. Positive Seal:  Sealing and holding is accomplished instantaneously. Reusable:  Connect and disconnect numerous times. Full Flow:  Fitting seals on outside diameter of tubing. Working Pressure:  Fittings rated to 275 PSI at ambient temperature. Maximum Working Temperature: 175 degrees F. Pre-applied thread sealant on all male pipe threads. Compatible Tubing:  Semi-rigid Nylon, Polyurethane and Polyethylene tube.

Additional Information

Tube O.D. 1/4 in.
Male NPT 3/8 in.
