# SANB5102S250-A  -  Clamp Butterfly Valves  -  316L Stainless Steel with Silicone Seal  -  2-1/2 in.

Double click on above image to view full picture

Zoom Out
Zoom In

# SANB5102S250-A - Clamp Butterfly Valves - 316L Stainless Steel with Silicone Seal - 2-1/2 in.

$1,000.00$155.45

Be the first to review this product

Product Id: SANB5102S250-A
$155.45
Add Items to Cart
OR

Quick Overview

# SANB5102S250-A - Clamp Butterfly Valves - 316L Stainless Steel with Silicone Seal - 2-1/2 in.

Product Description

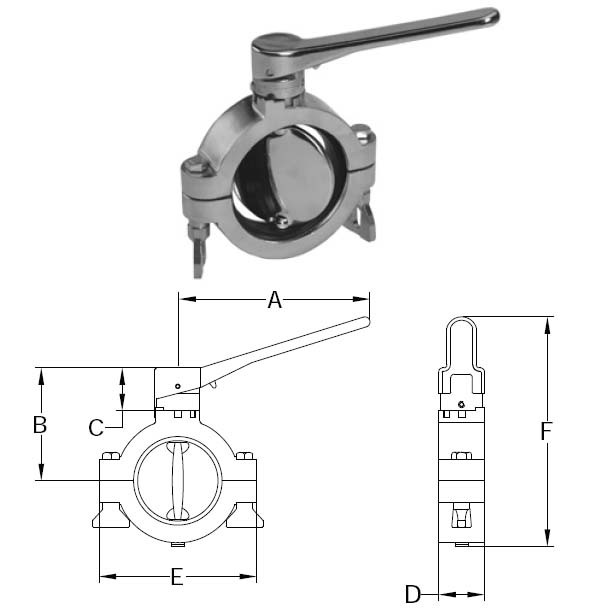

Dimensions: A: 5.6 B: 3.3 C: 1.3 D: 1.3 E: 4.6 F: 6.6 - Break Torque (inch lbs.): 260 - PSI: 120 - Valve is only 1-3/8" wide on all sizes. Valve uses only 3/4" of line space. The grooved clamp housing connects directly to any sanitary clamp style fitting. Easy assembly uses a hex key for the handle and wing nuts to secure and seal the housing onto your lines. Actuation available: double acting, spring return and electric.

Additional Information

Size 1/8 in.
Material Aluminum
